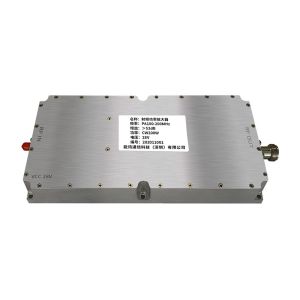

Name: UV Band PA100 500MHz 200W RF Power Amplifier High Integration Device for EMC Testing and Electronic Countermeasures
Brand: NENGXUN
Price: 1 USD

UV Band PA100 500MHz 200W RF Power Amplifier High Integration Device for EMC Testing and Electronic Countermeasures

Ask Lasest Price

Brand Name :

NENGXUN

Model Number :

NX-UVPA100-500

Payment Terms :

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :

10000

Delivery Time :

7days

UV Band PA100 500MHz 200W RF Power Amplifier High Integration Device for EMC Testing and Electronic Countermeasures

Product Overview
This UV Band PA100-500MHz 200W RF Power Amplifier is a high-performance device engineered for precise signal amplification across 100MHz~500MHz. Built with advanced technology, it caters to professional fields requiring reliable power amplification.

Key Features

High Integration & Passive Component Testing: Offers seamless integration and supports power tolerance testing for passive components.
Robust Protection & Stable Operation: Equipped with 80℃ temperature protection, ensuring safe operation under diverse conditions.

Electrical Performance

Frequency & Power: Works across 100MHz~500MHz, delivering 200W output CW saturation power with gain ≥53dB.
Signal Purity: Achieves spurious suppression ≥65dBc and harmonic suppression ≥12dBc, ensuring clean signal output.
Interface & Power Supply: Features SMA-F (RF input) and N-K (RF output) interfaces, powered by 28V/25A (max +33V) for stable operation.

Typical Applications
Ideal for EMC electromagnetic compatibility testing, electronic countermeasures, and other scenarios demanding high-power signal amplification. Its compact design (≤211×100×28 mm) and -25℃~+55℃ working temperature range further enhance its versatility in industrial and research applications.
