Name: 50W RF Power Amplifier Module NXPA95 105GHz Customized
Brand: NENGXUN
Price: 1 USD

Ask Lasest Price
Brand Name :	NENGXUN
Model Number :	NXPA9.5-10.5GHz-50W
Price :	The price is negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000
Delivery Time :	5-8DAYS

Add to Cart

PN:NXPA9.5-10.5GHz-50W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

Parameters
Frequency	9.5-10.5GHz
Max output Power (CW)	≥ 47dBm
Gain	≥ 46dB (customized)
Gain Flatness	≤ 2±1dB
Input power	2±1dBm
Input VSWR	≤ 1.7
Temperature protection	Over 80℃ protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	28V/13A
Working voltage	+30V
Working current	≤11A
Spurious	≤ -65dBc
Harmonic	harmonics Worst point≤ -40dBc
Operating Temperature	-30℃~+55℃
RF Connector	SMA-F
Power Supply Interface	feedthru capacitor
Dimensions(mm)/Weight	≤171×95×25.5 (without connectors), ≤600g
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

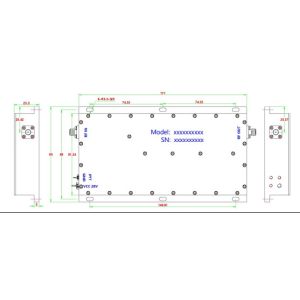

Outline Drawing

50W RF Power Amplifier Module NXPA9.5 10.5GHz Customized

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
